Scalar potential

As shown in class, an irrotational field, v, has a scalar potential ϕ, such that
v = ∇ϕ,
(1)
i.e. if v is rotation-free, ∇×v = 0, then, v can be derived from a scalar function, ϕ, which simplifies the analysis (three components of v vs. a single component of ϕ).
Example 1:
v = r     (position vector)
(2)
As
∇×r = 0,
r has a scalar potential. Verify that
ϕ = 1
2
 (x2 + y2 + z2).
(3)
Example 2: (Gravitational field)
F = G m M r
r3
 .
(4)

∇×F
=
G m M ∇×⎛
⎝ 		r
r3
⎞
⎠
=
G m M ⎛
⎝ 		∇⎛
⎝ 		1
r3
⎞
⎠ 		×r + 1
r3
 ∇×r⎞
⎠
=
−Gm M ⎛
⎝ 		∇r3
r6
 ×r⎞
⎠
=
−G m M 3 r2 ∇r
r6
 ×r
=
−G m M 3
r5
 r×r
=
0.
(5)
Verify that
ϕ = − G m M
r
 .
(6)
Example 3: The vector field, v = (2 x y, x2 − 1, 0) is an irrotational field (verify that ∇×v = 0) so there must exist a scalar potential, ϕ, such that v = ∇ϕ, i.e.

2 x y
=
∂ϕ
∂x
 ,
(7)
x2 − 1
=
∂ϕ
∂y
 ,
(8)
0
=
∂ϕ
∂z
 .
(9)
By integrating Eq.(7) with respect to x, one obtains

ϕ = x2 y + f(y),
(10)
where f(y) is a function of y alone. Equation (10) is substituted into Eq.(8) as

x2 − 1 = x2 + f′(y),
(11)
which is solved for f(y) as f(y) = −y + c where c is a constant so the scalar potential for v is
ϕ(x, y, z) = x2 y − y + C.
(12)
Example 4:
Compute

⌠
⌡

C
 ⎛
⎝ 		3 dx + 6 y2 z3/2 dy + (3 y3 √z + z) dz ⎞
⎠
where C is a curve x = sin t, y = cos 3 t, z = 2 t as t goes from 0 to 2 π.
(Solution)
The vector field, v = ( 3, 6 y2 z3/2, 3 y3 √z + z) is an irrotational field (verify !).
Solving
3 = ∂ϕ
∂x
 ,    6 y2 z3/2 = ∂ϕ
∂y
 ,     3 y3 √z + z = ∂ϕ
∂z
 ,
(13)
one gets
ϕ = 3 x + 2 y3 z3/2 + z2
2
 .
(14)
Therefore,

⌠
⌡

C
 ( 3 dx + 6 y2 z3/2 dy + (3 y3 √z + z) dz )
=
⌠
⌡

C
 d ⎛
⎝ 		3 x + 2 y3 z3/2 + z2
2
⎞
⎠
=
[3 x + 2 y3 z3/2 + z2
2
 ](0, 1, 0)(0, 1, 4 π)
=
16 π3/2 + 8 π2.
(15)


Note that
dϕ
=
∂ϕ
∂x
 dx+ ∂ϕ
∂y
 dy+ ∂ϕ
∂z
 dz
=
⎛
⎜
⎜
⎜
⎜
⎜
⎜
⎜
⎝
∂ϕ
∂x
∂ϕ
∂y
∂ϕ
∂z
⎞
⎟
⎟
⎟
⎟
⎟
⎟
⎟
⎠ 		·⎛
⎜
⎜
⎜
⎝
dx
dy
dz
⎞
⎟
⎟
⎟
⎠
=
∇ϕ·dr
=
v·dr.
(16)
So that a line integral, ∫v·dr, (see an example in the last lecture) can be evaluated as

⌠
⌡ 		v ·dr
=
⌠
⌡ 		dϕ
=
[ ϕ]AB
=
ϕB − ϕA.
(17)
Note also that scalar potentials are not unique. If an irrotational field, v, is derived from different scalar potentials, ϕ1 and ϕ2, i.e.

v
=
∇ϕ1,
(18)
v
=
∇ϕ2.
(19)
It follows
0
=
∇ϕ1 − ∇ϕ2
=
∇(ϕ1 − ϕ2),
(20)
so
ϕ1 − ϕ2 = C,
(21)
where C is a constant, i.e. the difference of two scalar potentials which yield the same irrotational field is at most a constant.

Vector potential

When a vector field, v, is divergence-free, i.e.
∇·v = 0,
(22)
in a simply connected region, there exists a vector, ψ, whose rotation is v, i.e.

v = ∇×ψ.
(23)
The vector, ψ, is called a vector potential. The necessary condition for the existence of a vector potential is ∇·v=0 as

∇·(∇×ψ) = 0.1
(24)
The converse (the sufficient condition) is more difficult to prove and is not presented here.
Just like scalar potentials, vector potentials are not unique, i.e. if a vector v is derived from two different vector potentials,

v
=
∇×ψ1
=
∇×ψ2,
(25)
it follows
0 = ∇×(ψ1 −ψ2),
(26)
which implies that the vector, ψ1−ψ2, is irrotational. Thereby,
ψ1 − ψ2 = ∇ϕ,
(27)
i.e. the difference between vector potentials that yield the same vector filed is at most ∇ϕ.
Unlike scalar potentials, vector potentials are more difficult to derive and less useful as three components of ψ are needed to yield three components of v.

Helmholtz theorem

If a vector field, v, is neither rotation free nor divergence free, it can be still expressed by both a vector potential and a scalar potential, i.e.

v = ∇ϕ+ ∇×ψ.
(28)
Proof: Consider the Poisson equation,
∆ϕ = ∇·v.
(29)
Provided this equation is solved for ϕ, Eq.(29) can be written as
∇·(v − ∇ϕ) = 0,
(30)
which implies that v − ∇ϕ is divergence free. Hence, it has a vector potential, i.e

v − ∇ϕ = ∇×ψ,
(31)
or

v = ∇ϕ+ ∇×ψ.
(32)

Gauss theorem in multiply connected bodies

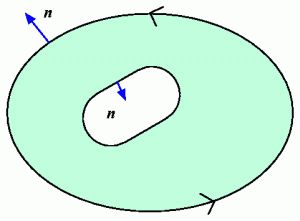

The Gauss theorem needs to be modified when applied to multiply connected bodies. The integral path can be selected as

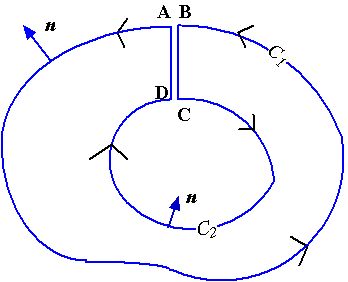

so that the contour integral becomes

⌠
(⎜)
⌡



 n ·v dl
=
⌠
⌡

A→ B
 n·v dl+⌠
⌡

B→ C
 n·v dl+⌠
⌡

C→ D
 n·v dl+⌠
⌡

D→ A
 n·v dl
(33)
=
⌠
⌡

A→ B
 n·v dl+⌠
⌡

C→ D
 n·v dl.
(34)
Note that
⌠
⌡

C→ D
 n·v dl
=
− ⌠
⌡

D→ C
 −n′·v(− dl)
(35)
⇒
− ⌠
(⎜)
⌡


C2
 n′·v dl,
(36)
where
n′ = − n.
(37)
Hence, the Gauss theorem for a multiply connected body can be written as

⌠
(⎜)
⌡


C1
 n·v d l−⌠
(⎜)
⌡


C2
 n·v d l = ⌠
⌡ 		⌠
⌡

D1−D2
 ∇·v d S.
(38)
Example: Verify Eq.(38) for v=(x,y).

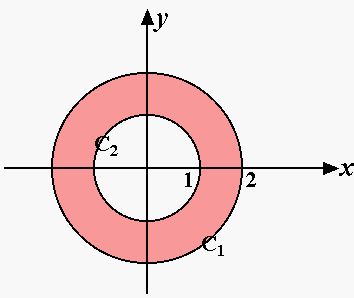

Note that along C1, v=(x, y) = (2 cos θ, 2sin θ), and along C2, v=(x, y)=( cos θ, sin θ).

LHS
=
⌠
⌡ 		2π

0
 ⎛
⎜
⎜
⎝
cos θ
sin θ
⎞
⎟
⎟
⎠ 		·⎛
⎜
⎜
⎝
2cos θ
2sin θ
⎞
⎟
⎟
⎠ 		2 dθ−⌠
⌡ 		2π

0
 ⎛
⎜
⎜
⎝
cos θ
sin θ
⎞
⎟
⎟
⎠ 		·⎛
⎜
⎜
⎝
cos θ
sin θ
⎞
⎟
⎟
⎠ 		dθ
(39)
=
8π−2π
(40)
=
6π.
(41)
RHS
=
⌠
⌡ 		⌠
⌡

D1−D2
 ⎛
⎜
⎜
⎜
⎜
⎜
⎝
∂
∂x
∂
∂y
⎞
⎟
⎟
⎟
⎟
⎟
⎠ 		·⎛
⎜
⎜
⎝
x
y
⎞
⎟
⎟
⎠ 		dS
(42)
=
⌠
⌡ 		⌠
⌡

D1−D2
 2 dS
(43)
=
2 ×( π22−π12)
(44)
=
6π.
(45)

Poisson's equations (not covered in class, for your reference)

  1. Steady state heat conduction with heat generation

    ∇·( k ∇T ) = −f.
  2. Electrostatic field
    ϵo ∆ϕ = − ρ,     (E = −∇ϕ).
  3. Torsion
    −∆ϕ = 2 G θ,     (σxz= ∂ϕ
    ∂y
    		 , σyz=− ∂ϕ
    ∂x
    		 ).
Derivation
We start with Green's second identity applied to a multiply connected body.

⌠
(⎜)
⌡


C
 ⎛
⎝ 		u ∂v
∂n
 − v ∂u
∂n
⎞
⎠ 		dl = ⌠
⌡ 		⌠
⌡

D
 (u ∆v − v ∆u) dS.
(46)

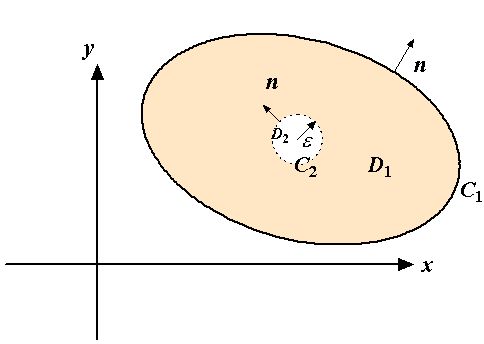

When the above identity is applied to a multiply-connected body with a circular hole centered at x with the radius, ϵ, Eq.(46) becomes

⌠
(⎜)
⌡


C1
 ⎛
⎝ 		u ∂v
∂n
 − v ∂u
∂n
⎞
⎠ 		dl−⌠
(⎜)
⌡


C2
 ⎛
⎝ 		u ∂v
∂n
 − v ∂u
∂n
⎞
⎠ 		dl = ⌠
⌡ 		⌠
⌡

D1−D2
 (u ∆v − v ∆u) dS,
(47)
where D1 is the total area and D2 represents the hole inside D. Note that n in the left hand side of Eq.(47) is both outward from the inside of the bodies.
It will be shown that by choosing u and v such that ∆u = −ρ and ∆v=0, Eq.(47) becomes something like

⌠
(⎜)
⌡


C1
 (boundary values of u) dl− 2πu = ⌠
⌡ 		⌠
⌡

D
 v ×ρdS
(48)
thus, the solution can be written as
u = 1
2π
 ⎛
⎝ 		⌠
⌡ 		⌠
⌡

D
 (− v ×ρ) d S + ⌠
(⎜)
⌡


C1
 (boundary value of u) dl⎞
⎠ 		.
(49)
If we choose v as

v = ln r,
(50)
then, v satisfies

∆v = 02.
(51)
Noting that

∆u = −ρ,
(52)
Eq.(47) becomes

⌠
(⎜)
⌡


C1
 ⎛
⎝ 		u ∂
∂n
 ln r − ln r ∂u
∂n
⎞
⎠ 		dl− ⌠
(⎜)
⌡


C2
 ⎛
⎝ 		u ∂
∂n
 ln r − ln r ∂u
∂n
⎞
⎠ 		dl = ⌠
⌡ 		⌠
⌡

D1−D2
 ( − ln r ∆u) dS,
(53)
where ∆ln r = 0 was used.
If C2 is chosen as a circle centered at r0 with a radius of ϵ, the left hand side of Eq.(53) becomes

LHS
=
⌠
(⎜)
⌡


C1
 ⎛
⎝ 		u ∂
∂n
 ln r− ln r ∂u
∂n
⎞
⎠ 		dl−⌠
(⎜)
⌡


C2
 ⎛
⎝ 		u ∂
∂r
 (ln r)− ln r ∂u
∂r
⎞
⎠ 		dl
(54)
=
⌠
(⎜)
⌡


C1
 ⎛
⎝ 		u ∂
∂n
 ln r− ln r ∂u
∂n
⎞
⎠ 		dl− ⌠
(⎜)
⌡


C2
 ⎛
⎝ 		u
r
 − ln r ∂u
∂r
⎞
⎠ 		dl.
(55)
When ϵ→ 0, the integrations over C2 in Eq.(55) become

⌠
(⎜)
⌡


C2
 u
r
 dl
=
⌠
⌡ 		2π

0
 u
ϵ
 ϵd θ⇒ 2πu,
(56)
⌠
(⎜)
⌡


C2
 ln r ∂u
∂r
 dl
=
⌠
⌡ 		2π

0
 ln ϵ ∂u
∂r
 ϵdθ⇒ 2π ∂u
∂r
 ϵln ϵ.
(57)
As ϵ→ 0, Eq.(57) tends to 0 (ϵln ϵ→ 0 3) so Eq.(53) becomes

⌠
(⎜)
⌡


C1
 ⎛
⎝ 		uA ∂
∂n
 ln r− ln r ∂uA
∂n
⎞
⎠ 		dl− 2πu = ⌠
⌡ 		⌠
⌡

D
 ln r ρdS,
(58)
which can be solved for u as
u = 1
2π
 ⌠
(⎜)
⌡


C1
 ⎛
⎝ 		uA ∂
∂n
 ln r− ln r ∂uA
∂n
⎞
⎠ 		dl− 1
2π
 ⌠
⌡ 		⌠
⌡

D
 ln r ρdS.
(59)
Example 1: Infinitely extended body and a pointwise heat source:
In this case, both uA and ∂uA/∂n vanish as x→ 0. The point source can be set as

ρ(x,y) = ρ0 δ(x,y),
(60)
where δ(x,y) is the two-dimensional Dirac delta function.
Thus, Eq.(59) becomes

u(x,y)
=
− 1
2π
 ⌠
⌡ 		∞

−∞
 ⌠
⌡ 		∞

−∞
 ln
√

(x−x′)2+(y−y′)2

 ρ0 δ(x′,y′) dx′dy′
(61)
=
− 1
2π
 ρ0 ln
√

x2+y2

 .
(62)
Example 2: Same with Example 1 but the heat source is distributed over −1 ≤ x ≤ 1 and y=0.

u(x,y)
=
− 1
2π
 ⌠
⌡ 		∞

−∞
 ⌠
⌡ 		∞

−∞
 ln
√

(x−x′)2+(y−y′)2

 ρ(x′,y′) dx′dy′
(63)
=
− 1
2π
 ⌠
⌡ 		1

−1
 ln
√

(x−x′)2+y2

 ρ0 dx′
(64)
=
…
(65)
=
(can be carried out by computer algebra)
(66)

Footnotes:

1
∇·(∇×ψ)
=
(∇×∇)·ψ
=
0
2
∆ln r
=
∇·∇ln r
=
∇· ∇r
r
=
∇· r
r2
=
∇·r r2 − r ∇r2
r4
=
2r2− r ·2 r ∇r
r4
=
2 r2− r ·2r r
r
r4
=
2r2−2r2
r4
=
0.
3

lim
ϵ→ 0
 ϵln ϵ =
lim
ϵ→ 0
 ln ϵ
( 1
ϵ
 )
 =
lim
ϵ→ 0
( 1
ϵ
 )
( −1
ϵ2
 )
 =
lim
ϵ→ 0
 (−ϵ) = 0.
